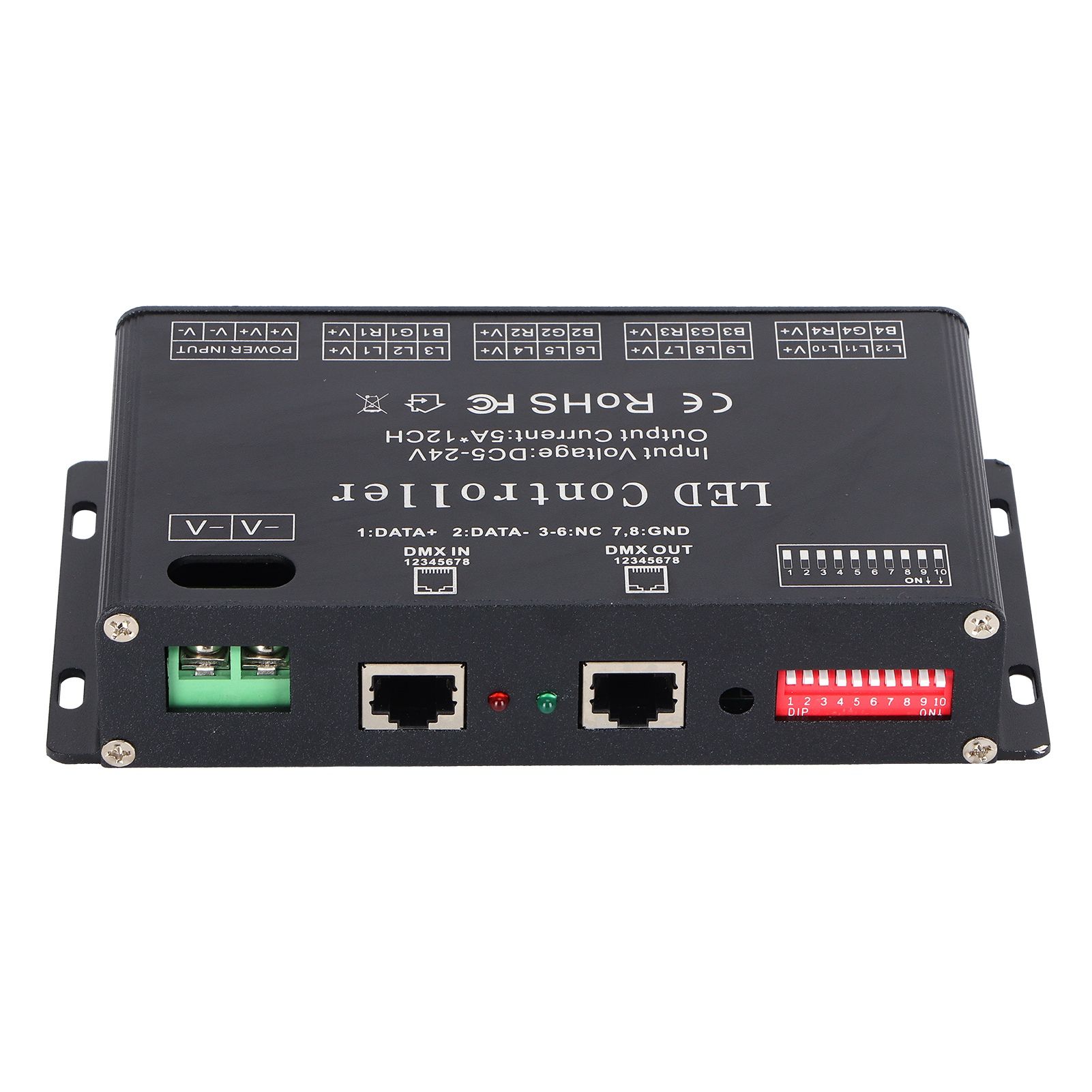

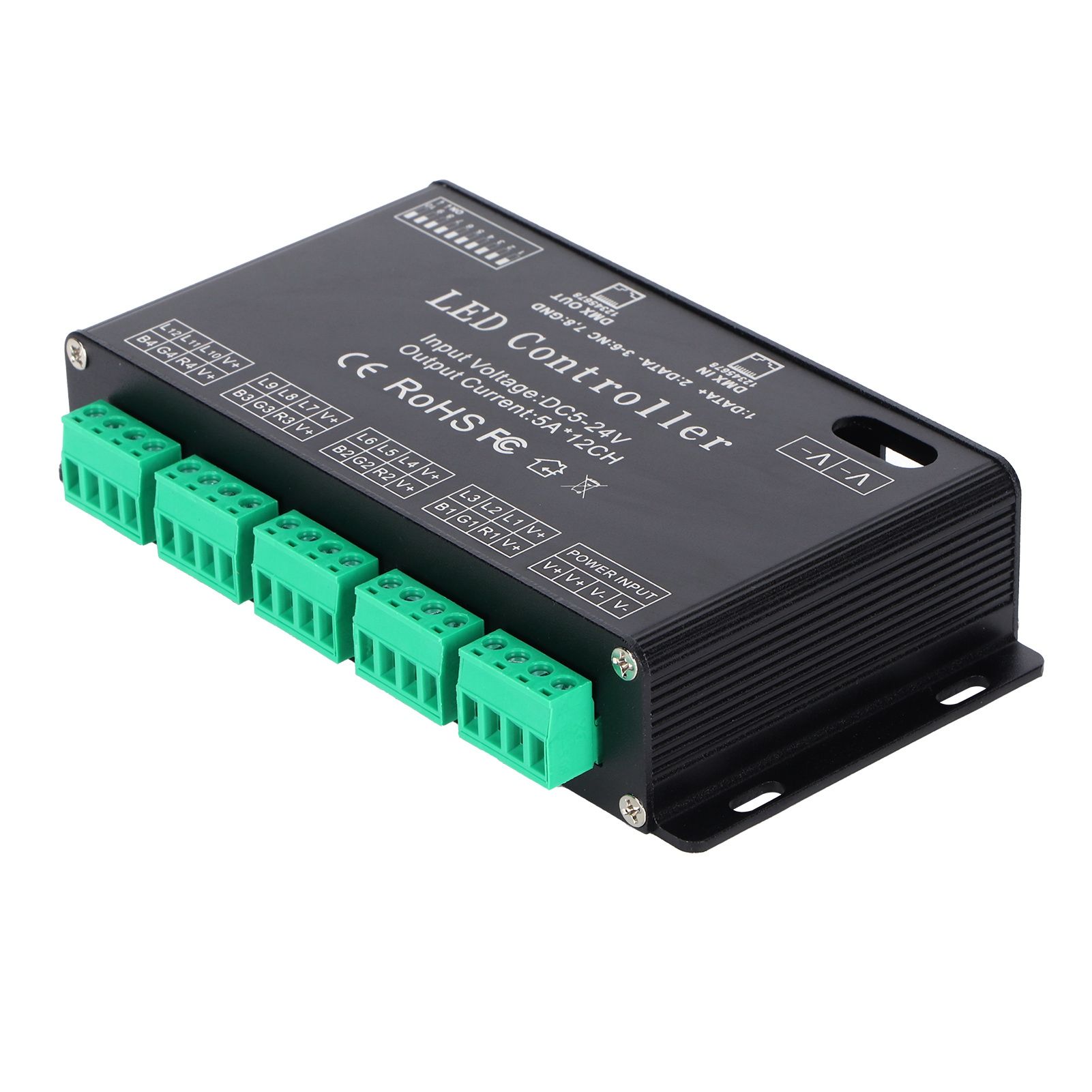

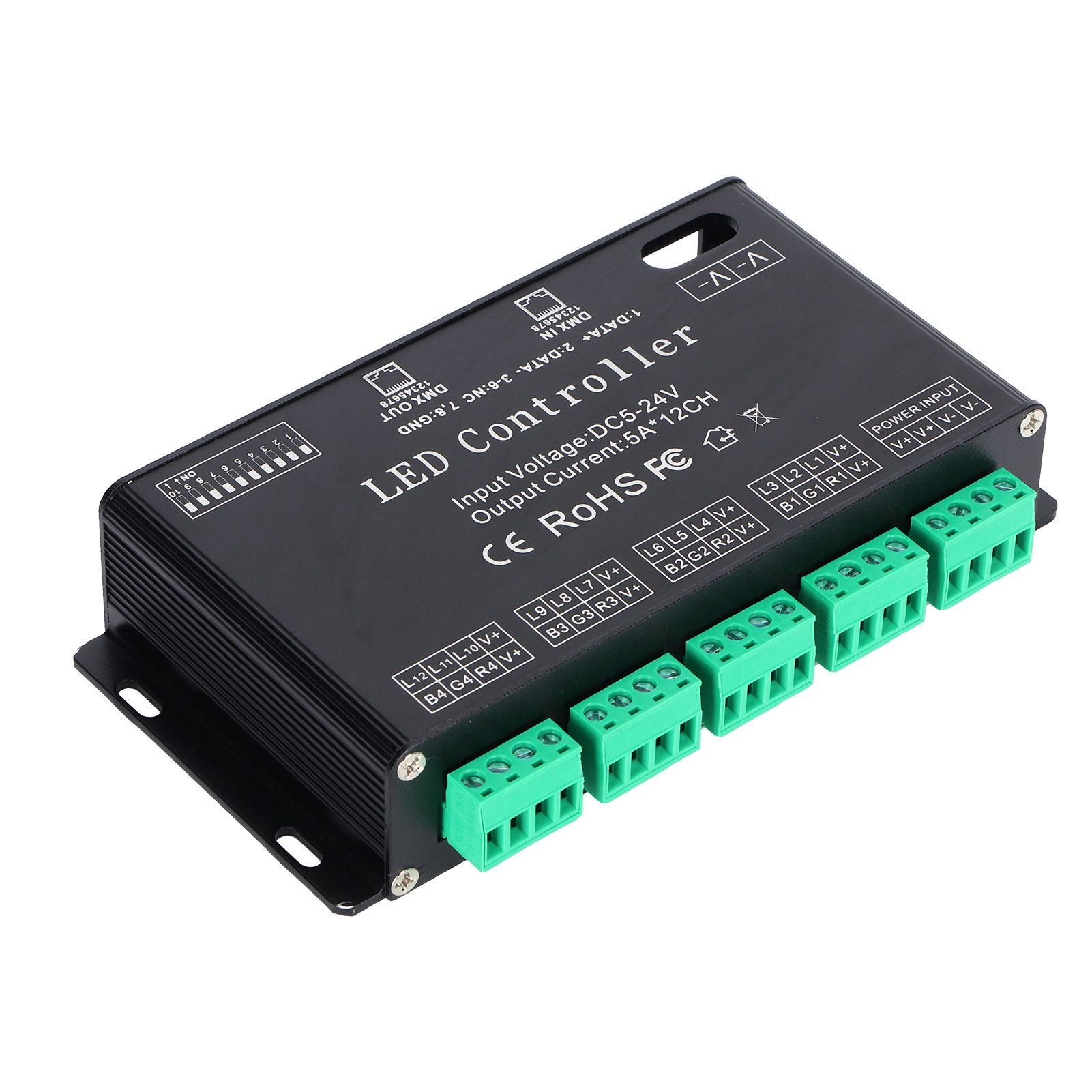

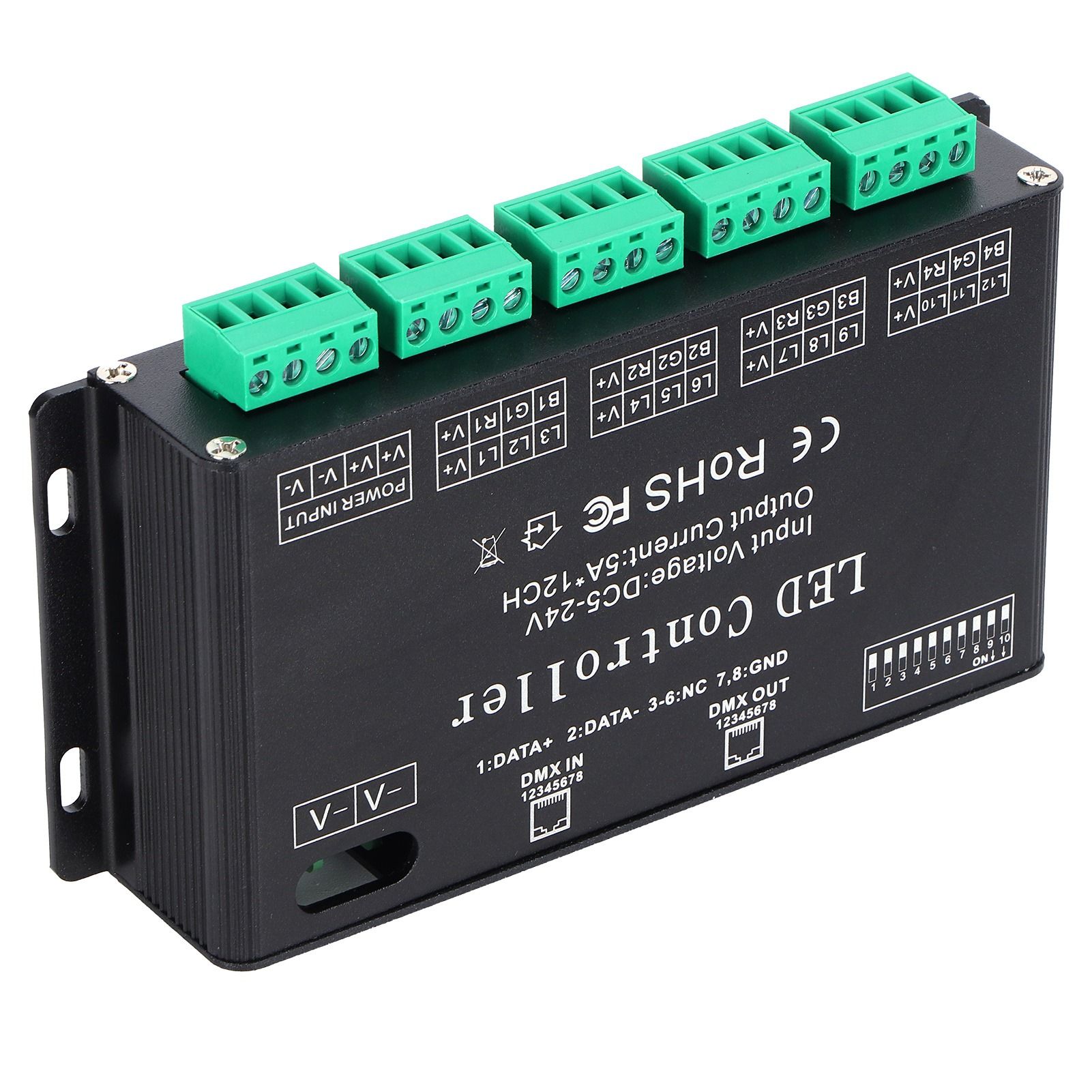

12 Channel DMX Constant Decoder RGB LED Light Strip Controller DMX512 Decoder DC5-24V

Item price

$87.95

or 4 payments of $21.99 with Afterpay, Zip or Klarna

Delivery is calculated at checkout — the total you see before you pay is the total you pay.

In stock · ready to order

Estimated delivery Tue, 6 Oct – Thu, 22 OctShips from our overseas warehouse · we email your tracking number as soon as it ships. An estimate, not a guaranteed delivery date.

Delivery & checkout

Delivery postcode

Quantity

Total to pay$87.95+ delivery

VISAAMEXafterpayZip.KlarnaPayPal

Sold by Placid Deals Australia

PLACID GROUP AUSTRALIA PTY LTD · ABN 22 695 488 674 · an Australian business

Questions: support@placiddeals.com · 0417303532

Delivery Returns & warranty Payments & terms Contact

Product details

1 x Decoding Controller 1 x Instruction Manual 1 x Cable

Adopts advanced computer control IC chip, can receive the international DMX ‑ 512 standard digital control signals and converted into PWM controller signal to control the LED.
The DMX decoder can be controlled by the DMX console, and can connected with numbers of DMX decoder to expand the outputs to realize all kinds of changing shows.
This DMX decoder can be used as the synchronous controller to controlled the LED in synchronous, with 4096 levels grey scale output per channel.
Suitable for strip light RJ45 connection. Widely used in large‑scale LED outdoor decoration projects and activities. Perfect color fade and smooth effect, simultaneously let LED color more affluent.
0‑100% dimming output, each channel 256 gray levels. Each occupied by 12 DMX address, address codes set by DIP switches.

Specifications

Item Type: Decoding Controller
Material: Aluminum
Color: As shown in the picture
Size: Approx. 7.8x3.2x13.7cm / 3.1x1.3x5.4in
Weight: Approx.380g/13.4oz
Maximum Loadable Power: 300W(5V) 720W(12V) 1440W(24V)
Output Gray Level: 256 levels
Signal Input: DMX512/1990
Signal Output: 12 channels constant voltage PWM
Output: DMX 12 addresses
DMX512 Socket: Standard RJ45 network port
