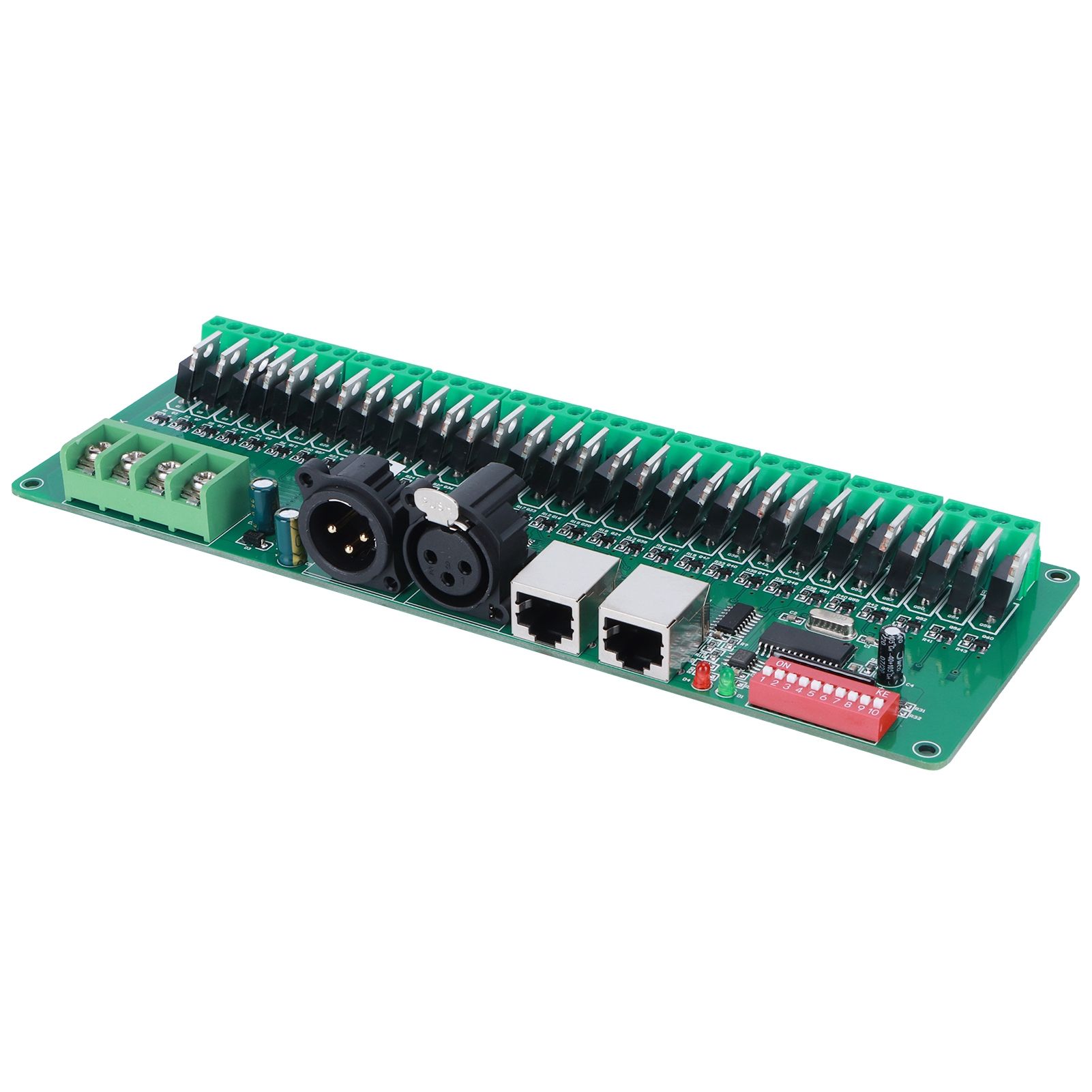

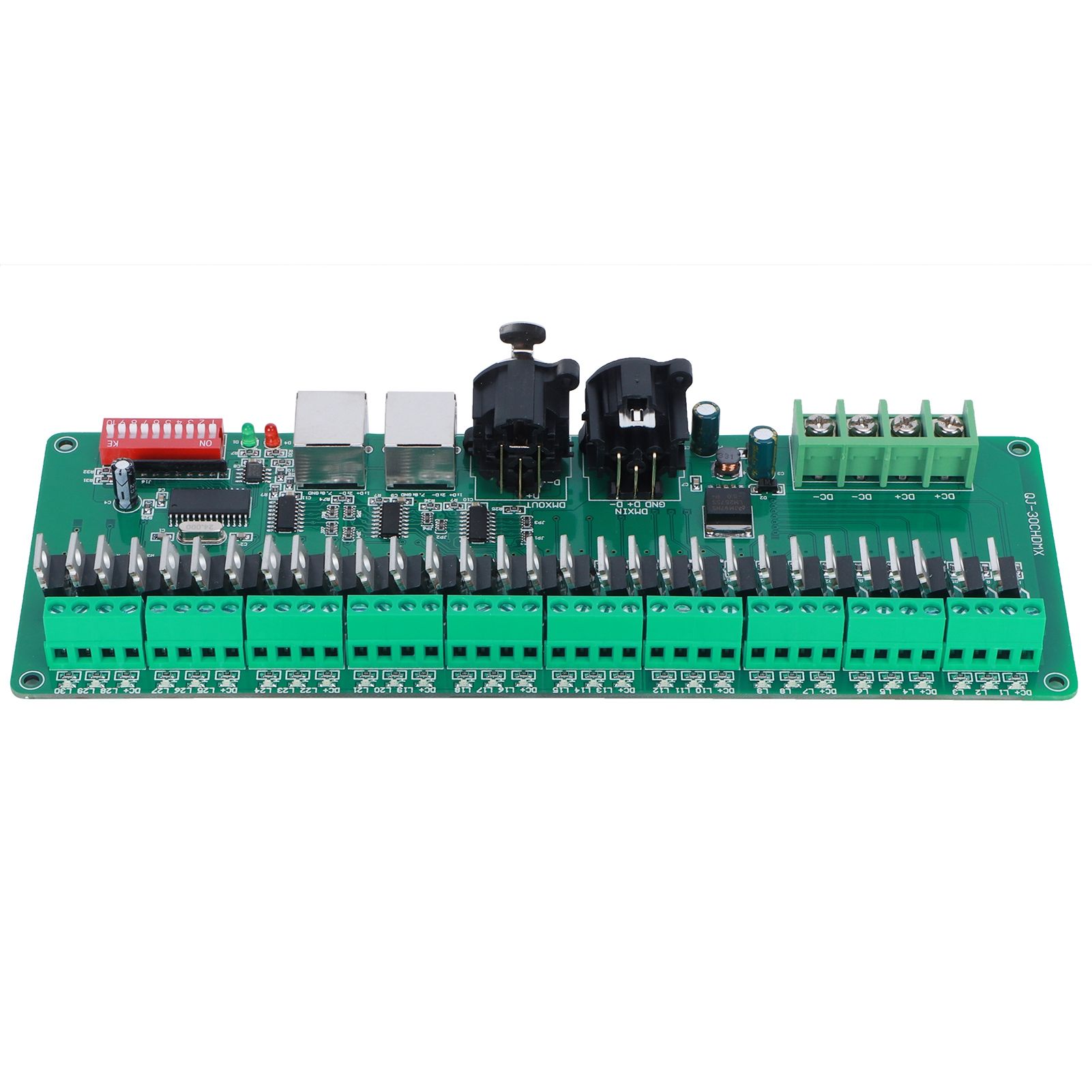

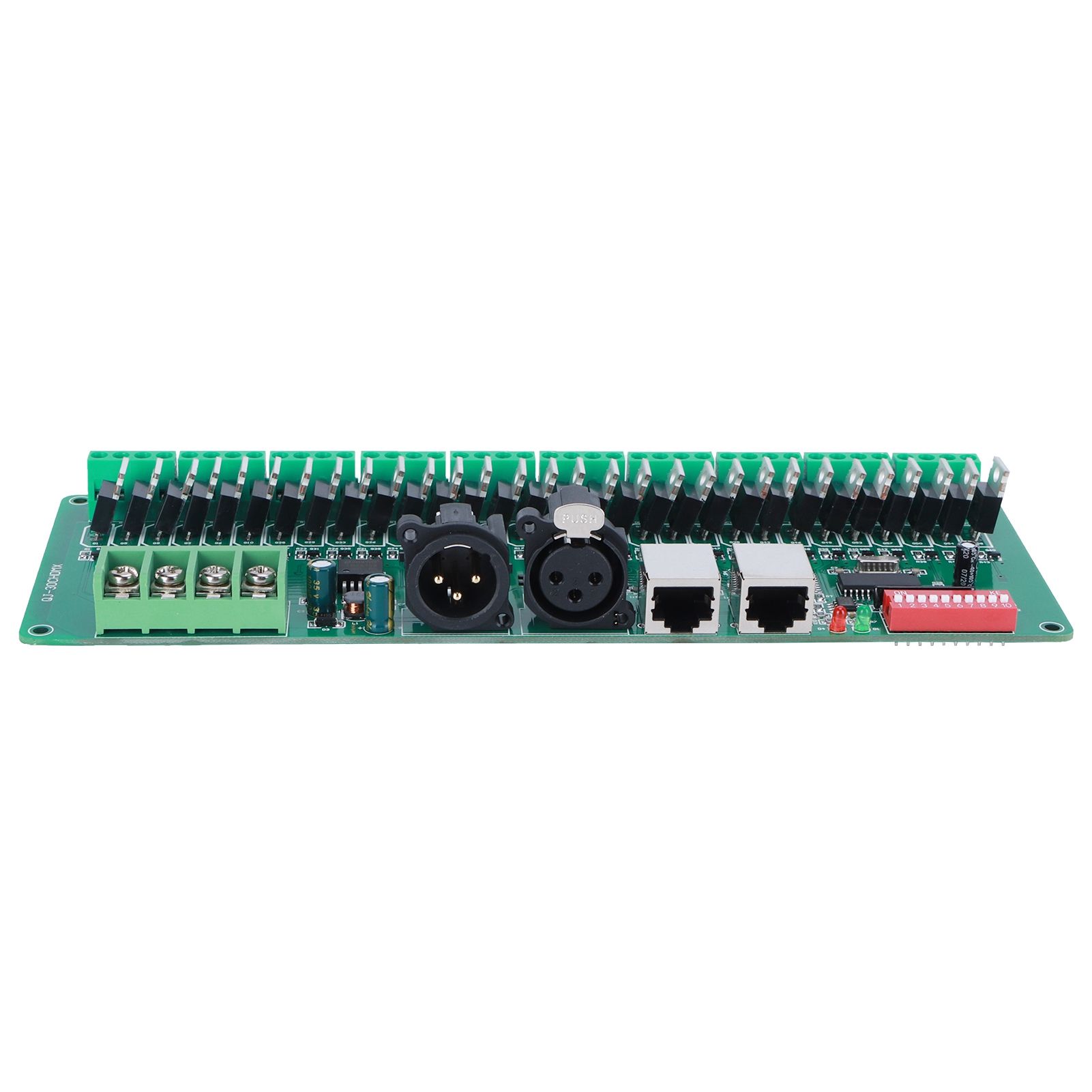

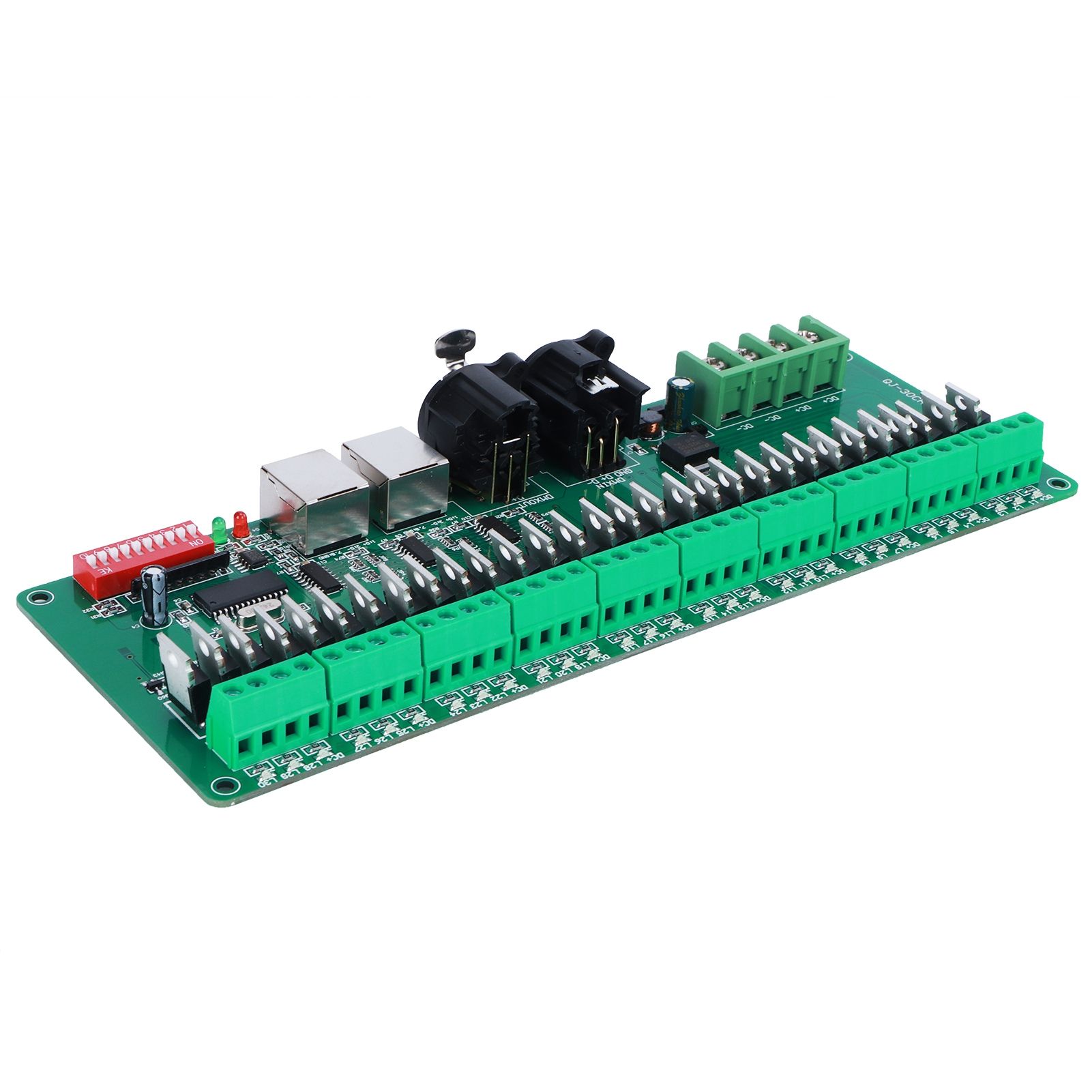

30CH DMX512 Constant Decoder LED Controller Decoder for LED Strip Light Stage Bar Supplies 5-24V

Item price

$109.95

or 4 payments of $27.49 with Afterpay, Zip or Klarna

Delivery is calculated at checkout — the total you see before you pay is the total you pay.

In stock · ready to order

Estimated delivery Tue, 6 Oct – Thu, 22 OctShips from our overseas warehouse · we email your tracking number as soon as it ships. An estimate, not a guaranteed delivery date.

Delivery & checkout

Delivery postcode

Quantity

Total to pay$109.95+ delivery

VISAAMEXafterpayZip.KlarnaPayPal

Sold by Placid Deals Australia

PLACID GROUP AUSTRALIA PTY LTD · ABN 22 695 488 674 · an Australian business

Questions: support@placiddeals.com · 0417303532

Delivery Returns & warranty Payments & terms Contact

Product details

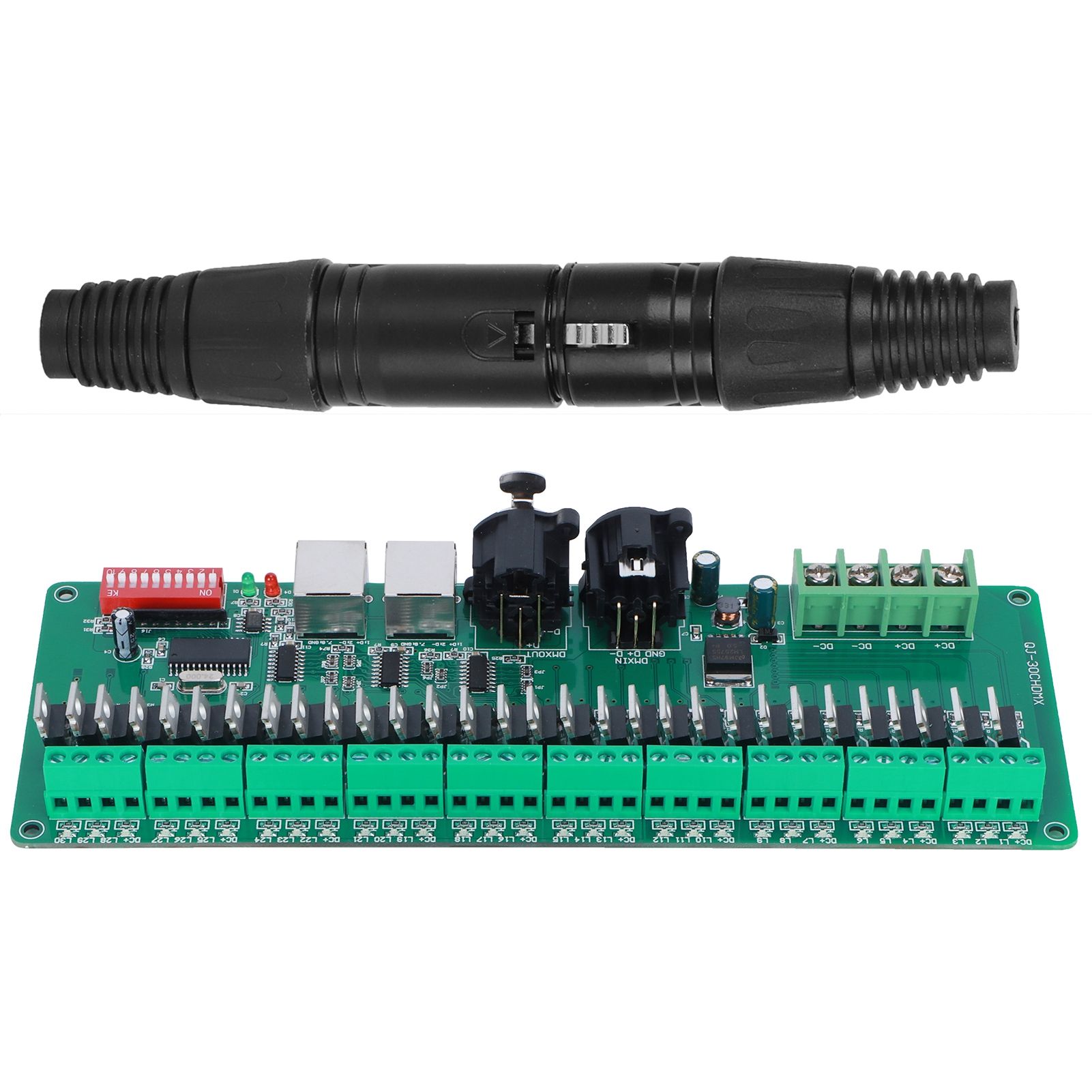

1 x Decoder 1 x XLR Head 1 x Instruction Manual

International standard DMX512 input protocol, address codes can be set by DIP switch.
Wide voltage DC input DC5V～DC24V. There are 30 DMX addresses occupied by each unit.
0‑100% dimming output, 1~30 output channels can be selected, each channel can achieve 256 levels of control.
30 channel constant voltage decoder, mainly used for DMX512 control equipment to control ordinary LED lamps.
Using advanced microelectronic control technology, the internationally popular DMX512/1990 standard digital control signal is converted into an analog control signal.

Specifications

Item Type: DMX Decoder
Material: Aluminum
Color: As shown in the picture
Size: Approx.22.5x8x3.2cm/8.9x3.1x1.3in
Weight: Approx.355g/12.5oz
Maximum Loadable Power: 300W(5V) 720W(12V) 1440W(24V)
Output Gray Level: 256 levels
Rated Voltage: 5-24V
Signal Input: DMX512/1990
Signal Output 30 Channels: Constant voltage PWM
Output DMX: 30 addresses
DMX512 Socket: Standard RJ45 network port
Signal Mode: International standard dmx512
Interface Type: XLR head, network port
