6 pcs 12V 30A Fuse Relay Switch Harness Ato/Atc Blade Fuse, 5 Pin Spst Automotive Electrical Relays With Heavy Duty 14

Item price

$58.95

or 4 payments of $14.74 with Afterpay, Zip or Klarna

Delivery is calculated at checkout — the total you see before you pay is the total you pay.

In stock · ready to order

Enter your postcode for a delivery estimate.Ships from an overseas warehouse · we email your tracking number as soon as it ships. An estimate, not a guaranteed delivery date.

Delivery & checkout

Delivery postcode

Quantity

Total to pay$58.95

VISAAMEXafterpayZip.KlarnaPayPal

Sold by Placid Deals Australia

PLACID GROUP AUSTRALIA PTY LTD · ABN 22 695 488 674 · an Australian business

Questions: support@placiddeals.com · 0417303532

Delivery Returns & warranty Payments & terms Contact

Product details

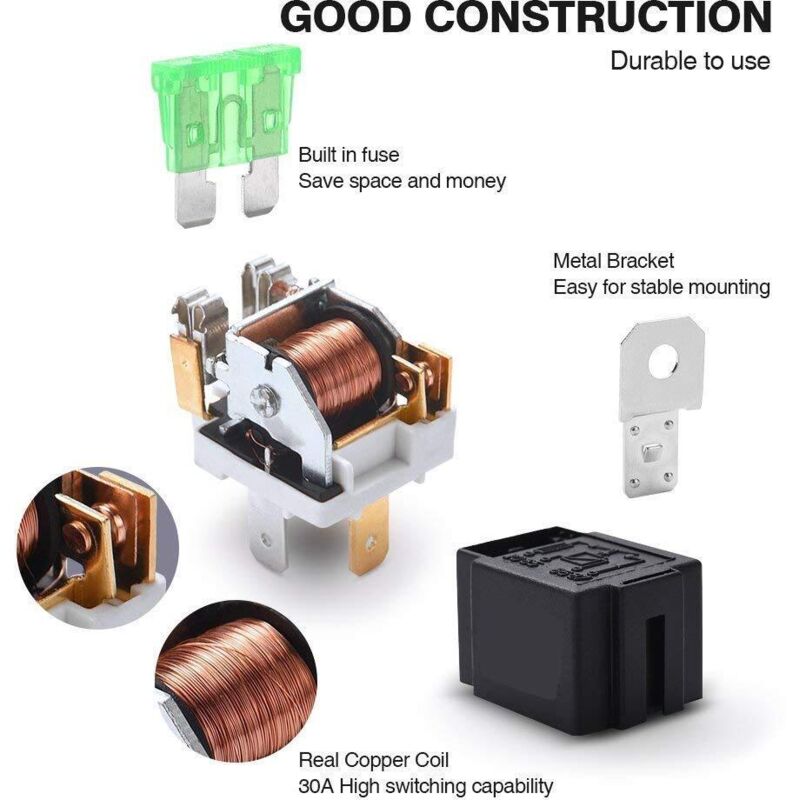

Automotive relays built into a fuse socket with 30A blade fuse included, no need for a separate fuse holder, saving space and money. Heavy duty 14AWG wires for main contact Relay sockets come with color coded wires for convenient wiring of loads/accessories. Black - Ground (85), Red - VDC (30), White - Trip (86), Blue - N/O Output (87) The nested design of a unique male-female slot on each socket edge, easy to connect all relays together, providing a clean and neat installation 12V DC (Max 14V DC) and 30A High switching capacity. Bosch style 5-pin SPST (Single Pole Single Throw) relay. Metal mounting bracket on the electrical relay makes installation easy Wide range of use, widely used for car lights, fog lights, wipers, starter, fans, speakers, traction control systems, etc. Description Some automotive devices like horns, starters and headlights need a lot of current to work. If the working voltage is very high, it is easy to cause electric shock to operators. If the working current is large, will generate a lot of heat to burn the switch. Automotive relay is an electronic control device, usually used in an automatic control circuit. It is actually an "automatic switch" that controls a large current through a small current. Used in work lights, fog lights, starter, wipers, fans, speakers, central locking, alarm, power windows, etc. Serves as a common ground connection to activate and magnetize the internal coil. This is where a switch connected to a 12V DC input will be connected to the relay. When power is sent to the relay via pin 86, the circuit is completed by pin 85 connected to a common ground, which activates and magnetizes the internal coil. The connection between pin 87 and pin 30 is made only when the internal coil is activated or magnetized.

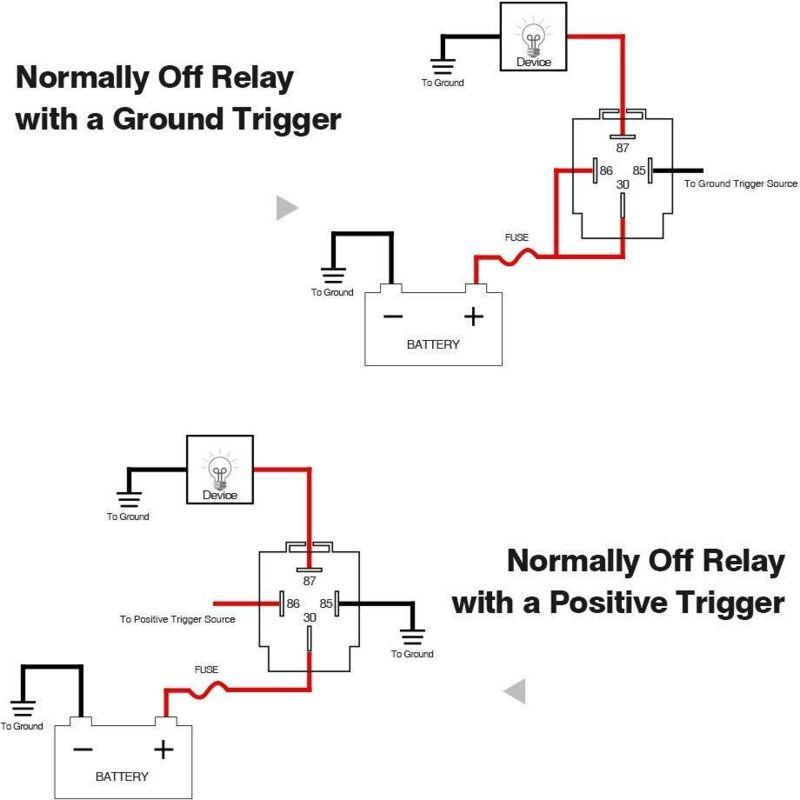

86: Connected to a positive 12V DC input
87: Normally open contact, also known as NO
30: Common contact that can be connected to a 12V DC power input or chassis ground depending on the desired application

Specifications

Application: Suitable for all automobiles and devices equipped with a 12 volt DC power source
Relay and Harness Plug Instruction: -85: Connected to chassis ground

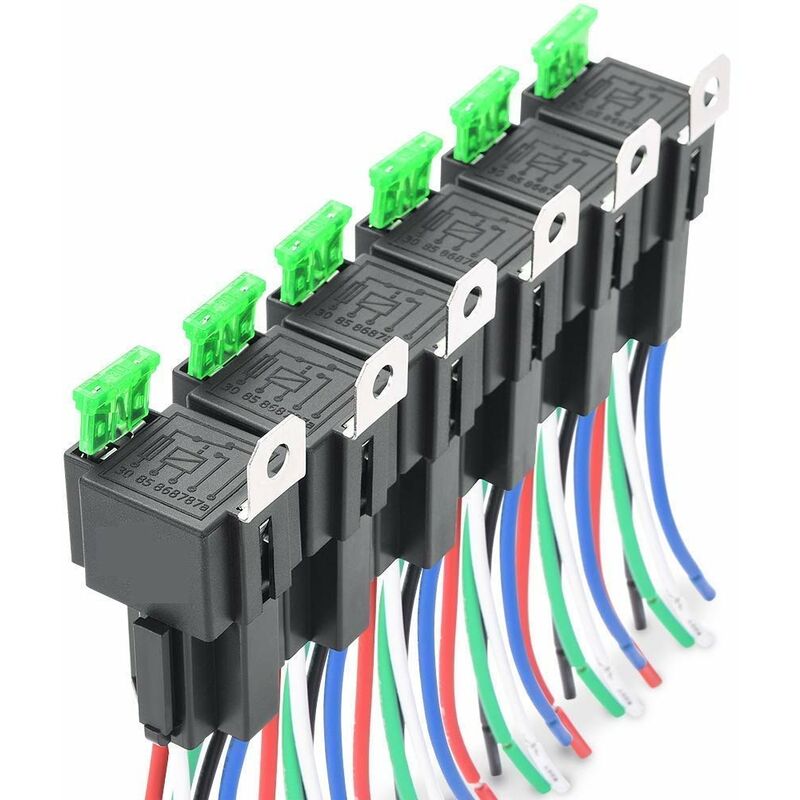

Product Contents: 6 x Relays 6 x Relay Harness 6 x Blade Fuses
