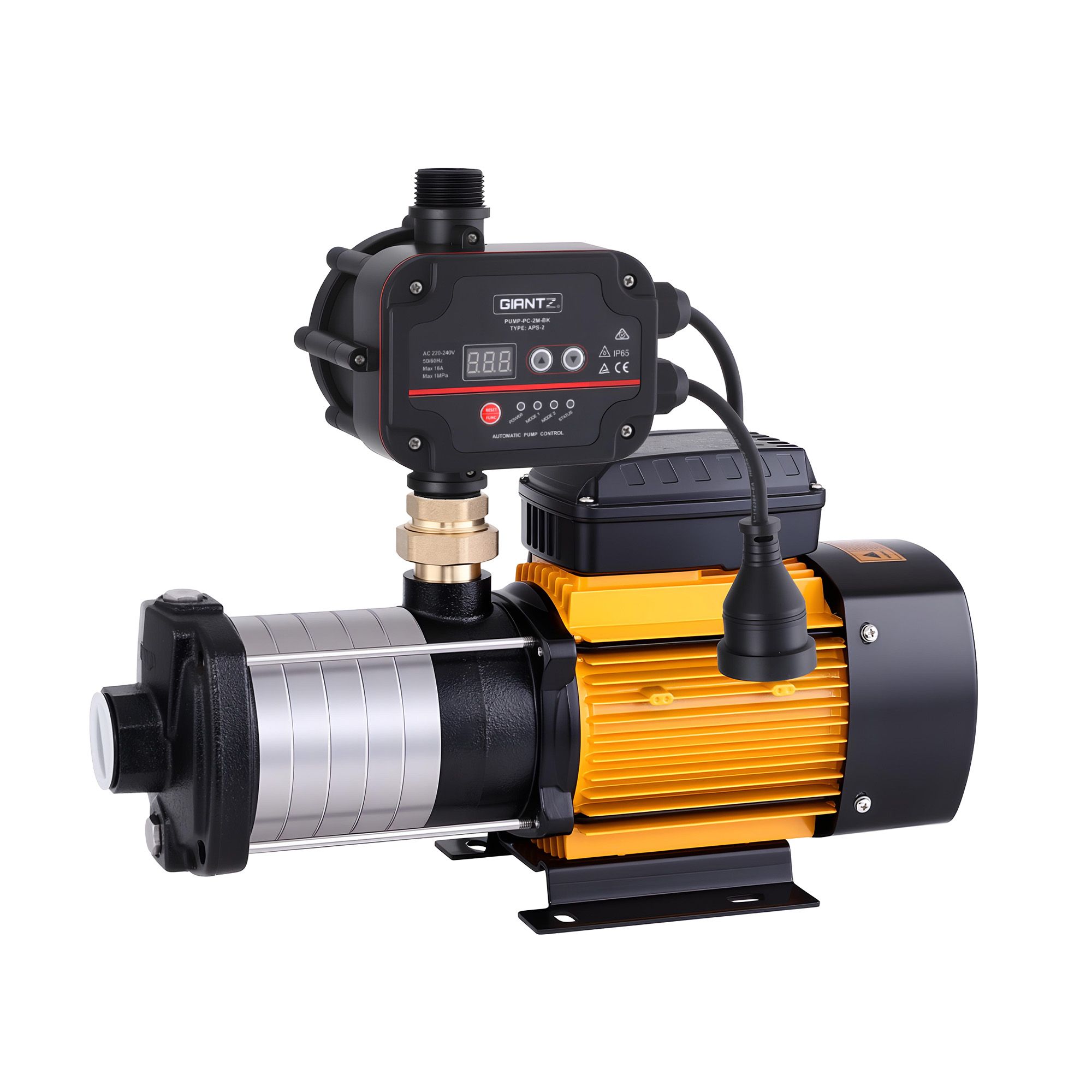

Upgrade your home water supply with the Giantz multi stage water pump and automatic pump controller. This farm irrigation booster pump delivers 12,000L/hr. Designed for a continuous duty cycle, this constant pressure pump features a durable stainless steel home water supply build.
I. IMPORTANT WARNING – PROHIBITED USES:
This pump is NOT designed for heavy-duty industrial, commercial, or hydraulic applications. STRICTLY PROHIBITED for use with elevator systems, industrial machinery, or as a power unit for any equipment beyond its capacity. Misuse will void the warranty and may cause product failure.
II. Operating Scope & Limitations
Home garden watering and irrigation
Transferring water from rainwater tanks or wells
Boosting water pressure in domestic pipelines
Circulating water in ponds or small fountains
Absolutely not suitable for powering hydraulic elevator systems, heavy machinery, or in any continuous high-load operation.
Ensure the electrical supply matches the pump's requirement.
Features
Max. 2500W powerful 6-stage water pump
Fully automatic smart pressure controller
12,000L/hr maximum high water flow
Continuous operation 100% duty cycle
Rust resistant stainless steel casing
Built-in thermal dry-run protection
Highly conductive efficient copper motor
Anti-corrosive alloy motor housing
Corrosion resistant 1-inch brass connector
SAA certified Australian standard plug
Specifications:
Pump:
Rated input power:1300W
Max input power: 2500W
Plug and cord: SAA 250V/10A *0.3m
Max pump flow: 12,000L/h (200L/min)
Max head: 70m
Duty cycle: Continuous
Impeller Stainless steel
Pump body: Stainless steel
Motor shaft: Stainless steel
Inlet diameter: 1.25'' (30mm)
Outlet diameter: 1'' (25mm)
Brass connector: 1''
Protection class: IP44
Insulation class: B (130℃)
Max ambient temperature: 40℃
Max liquid temperature: 60℃
Pump controller:
Max Current: 16A
Max Power: 1.5kW
Starting Pressure: Adjustable 0.5 – 4.5 Bar
Stopping Pressure: Adjustable 1.0 – 8.0 Bar
Max Working Pressure: 10 Bar
Max Flow Rate: 60 – 160 L/min
Protection: Pipe Over-Pressure & Dry-Run
IP Rating: IP65
Connection: 1" (25mm) Male Thread
Max Temp: 60°C
Package Content
Water Pump x1
Pump Controller x1
This product comes with 1 year warranty
