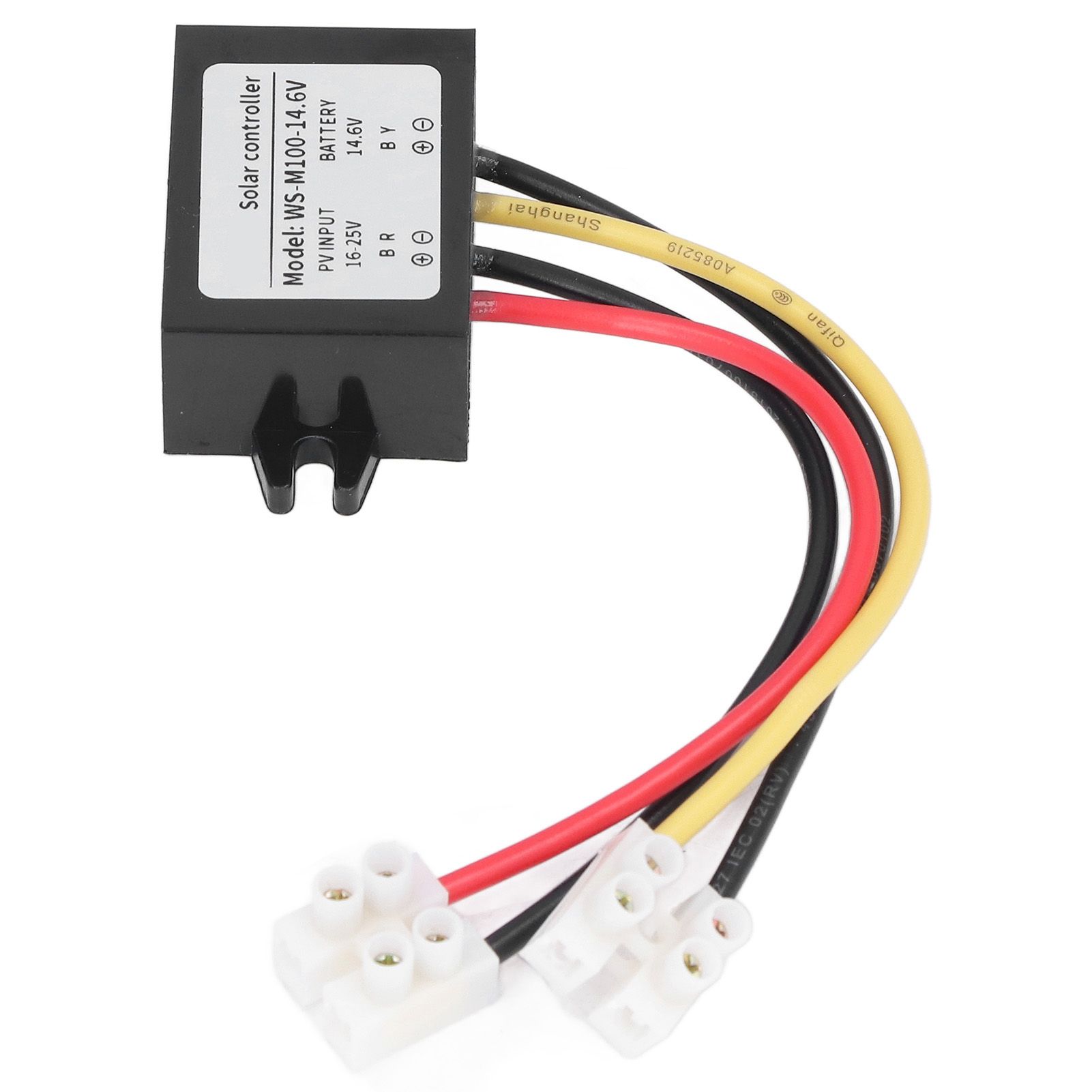

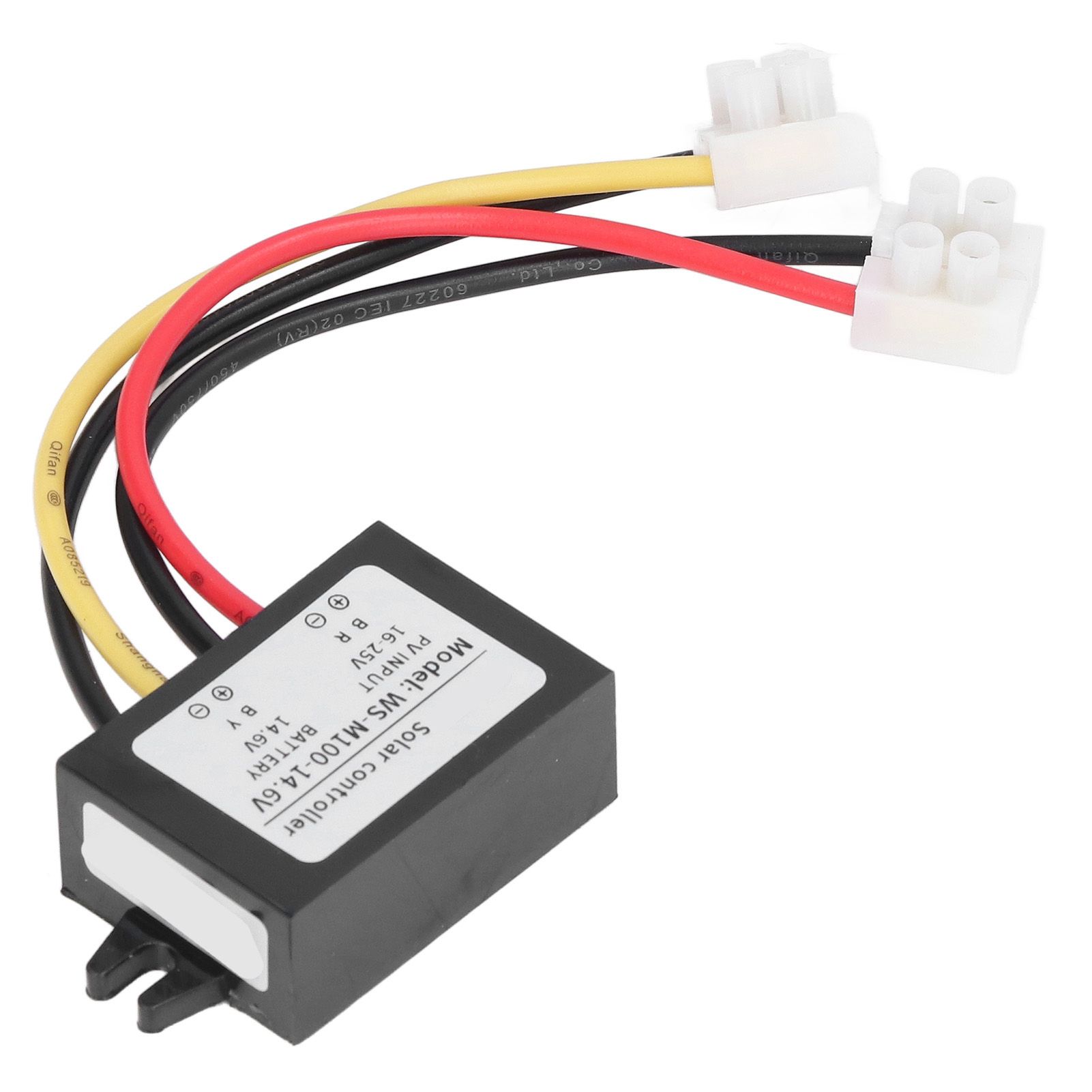

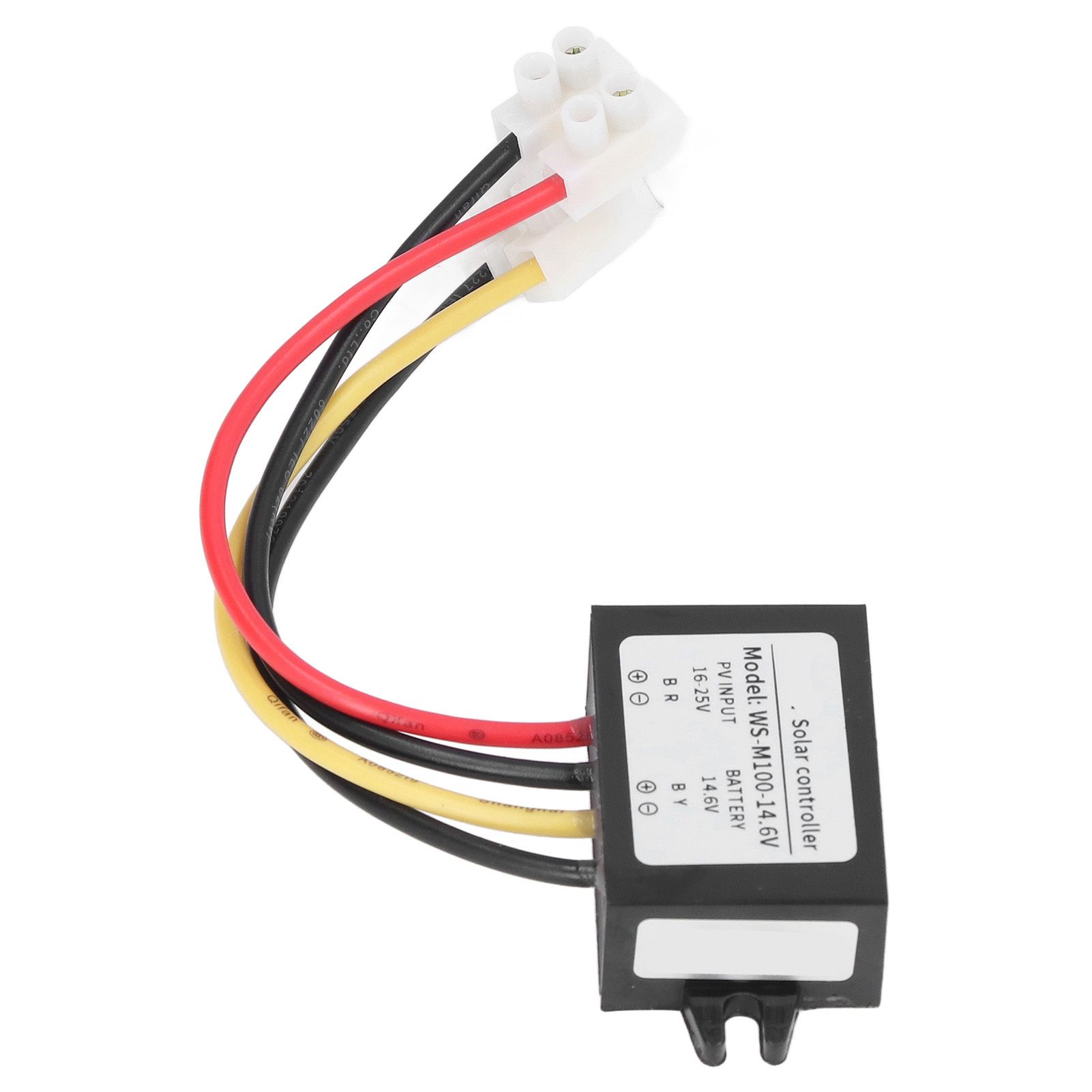

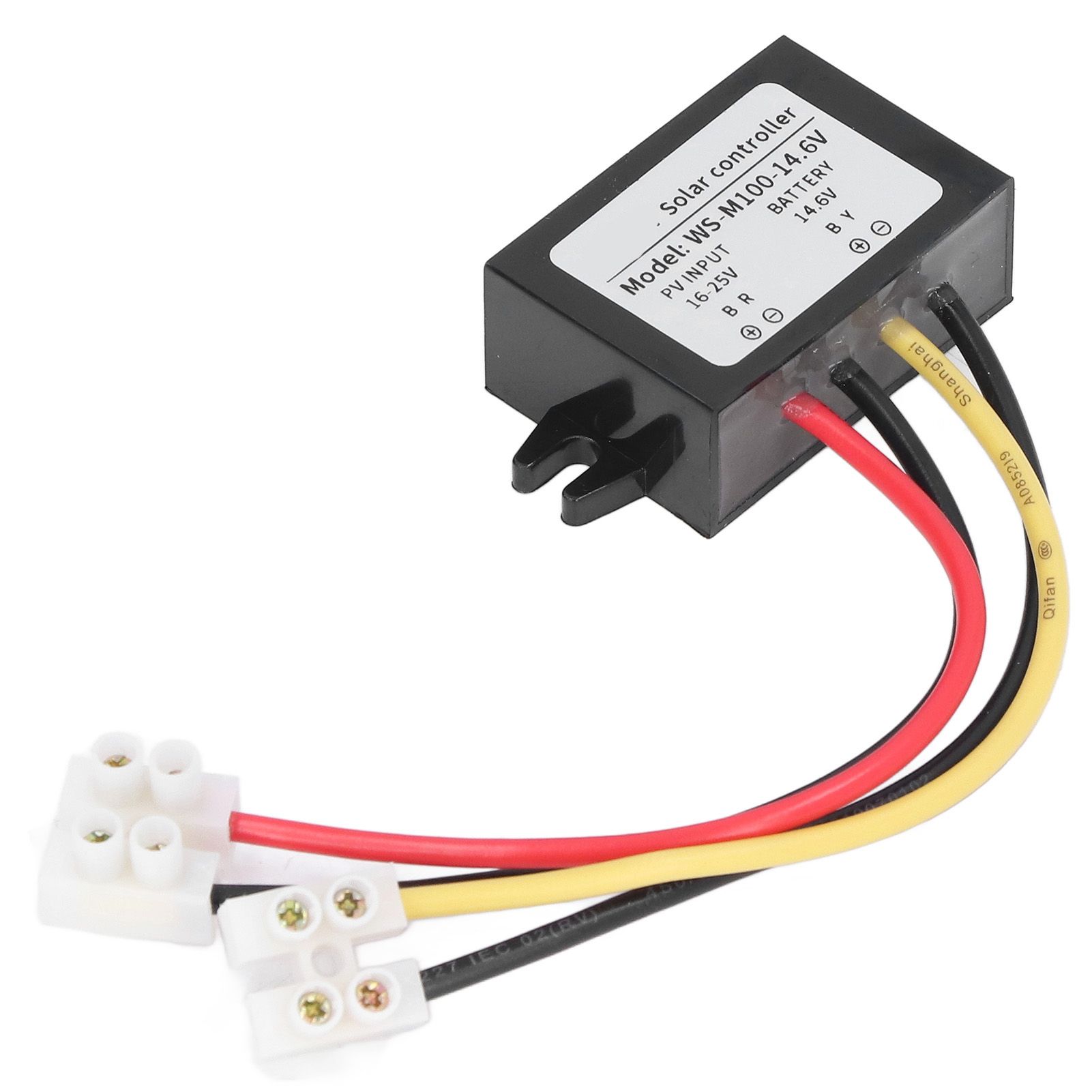

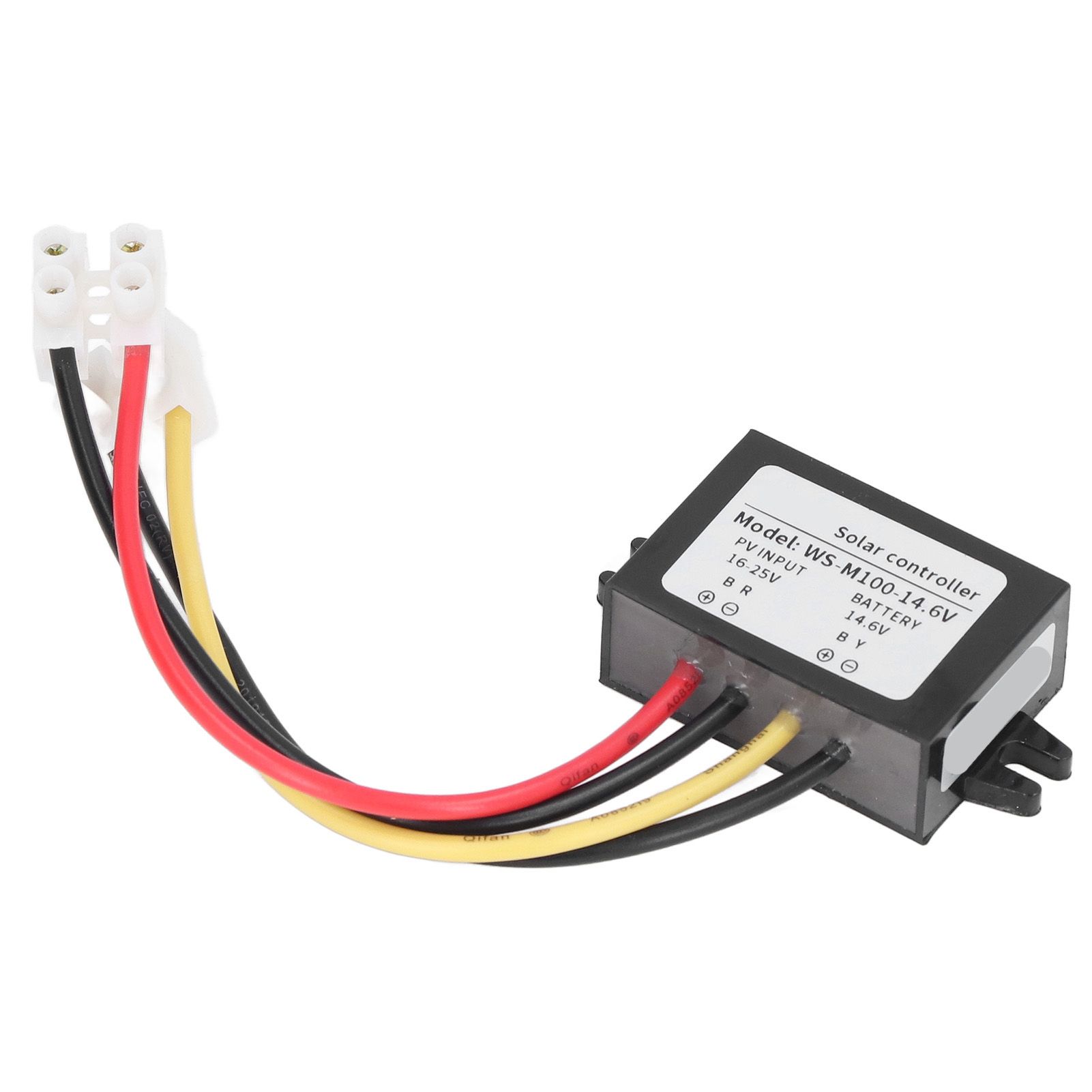

MPPT Solar Controller Protective Control Panel Switch Battery Charging Supplies 100W WS‑M100‑14.6V

Item Type MPPT Solar Controller Model Applicable battery 12V lead acid battery 3 strings lithium batteries 4 strings lithium iron phosphate batteries Suitable for photovoltaic panel parameters Open circuit voltage 21-25V Peak power voltage Charging module PV input starting voltage 17V PV input tracking voltage 15-25V 15-25V 16-25V Output to battery voltage 8A No Load loss 20MA Voltage regulation 1% Load Regulation 5% Full load ripple 400mV No load ripple 100mV Discharging module Static power 12mA Protection module Battery terminal short circuit protection Yes Load short circuit protection Yes Temperature protection Yes Operating temperature Application Areas: Solar street light controller solar power charger solar electric bike solar electric tricycle solar toy car PROTECTION FUNCTION: OVERHEATING PROTECTION: When the internal temperature of the MPPT controller exceeds 100℃, the MPPT controller will reduce the output power. If the internal temperature continues to rise to 110℃, the MPPT controller will automatically turn off the output. When the internal temperature of the MPPT controller is lower than 90℃, the MPPT controller will automatically resume operation. SHORT CIRCUIT PROTECTION: When an unexpected short circuit occurs in the MPPT controller output, the MPPT controller automatically turns off the output and automatically returns to normal after the short circuit removed. INPUT UNDERVOLTAGE PROTECTION: When the input DC voltage of the MPPT controller is lower than 15V, the MPPT will protectively shut down and automatically resumes operation after the input voltage is normal. PREINSTALLATION INSPECTION: 1. Check the appearance is normal before installation. 2. Check the label on the MPPT controller enclosure to verify that the specifications and performance of the MPTT controller match the equipment. 1 x MPPT Solar Controller

• POWER MAXIMIZATION: The MPPT controller utilizes solar Maximum Power Point Tracking (MPPT), a technology that draws maximum power from solar panels
• HIGH CONVERSION EFFICIENCY: High efficiency synchronous rectifier circuit structure is adopted, which also has high conversion efficiency in low power charging environment
• MULTIPLE PROTECTION FUNCTIONS: Come with short circuit protection, over temperature protection, solar input under voltage protection
• APPLICATION FIELD: Suitable for solar street light controller, solar charger, solar electric bicycle, solar electric tricycle, solar toy car
• BATTERY POWER SUPPLY: 100W MPPT solar control panel is an important battery supply, useful and practical, provide great convenience for your life
• 8V 4 line
• 6V 4 line
• 6V 4 line
• 5V
• 5V
• 8V
• 6V
• 6V — Output to battery current
• 40℃~+65℃
