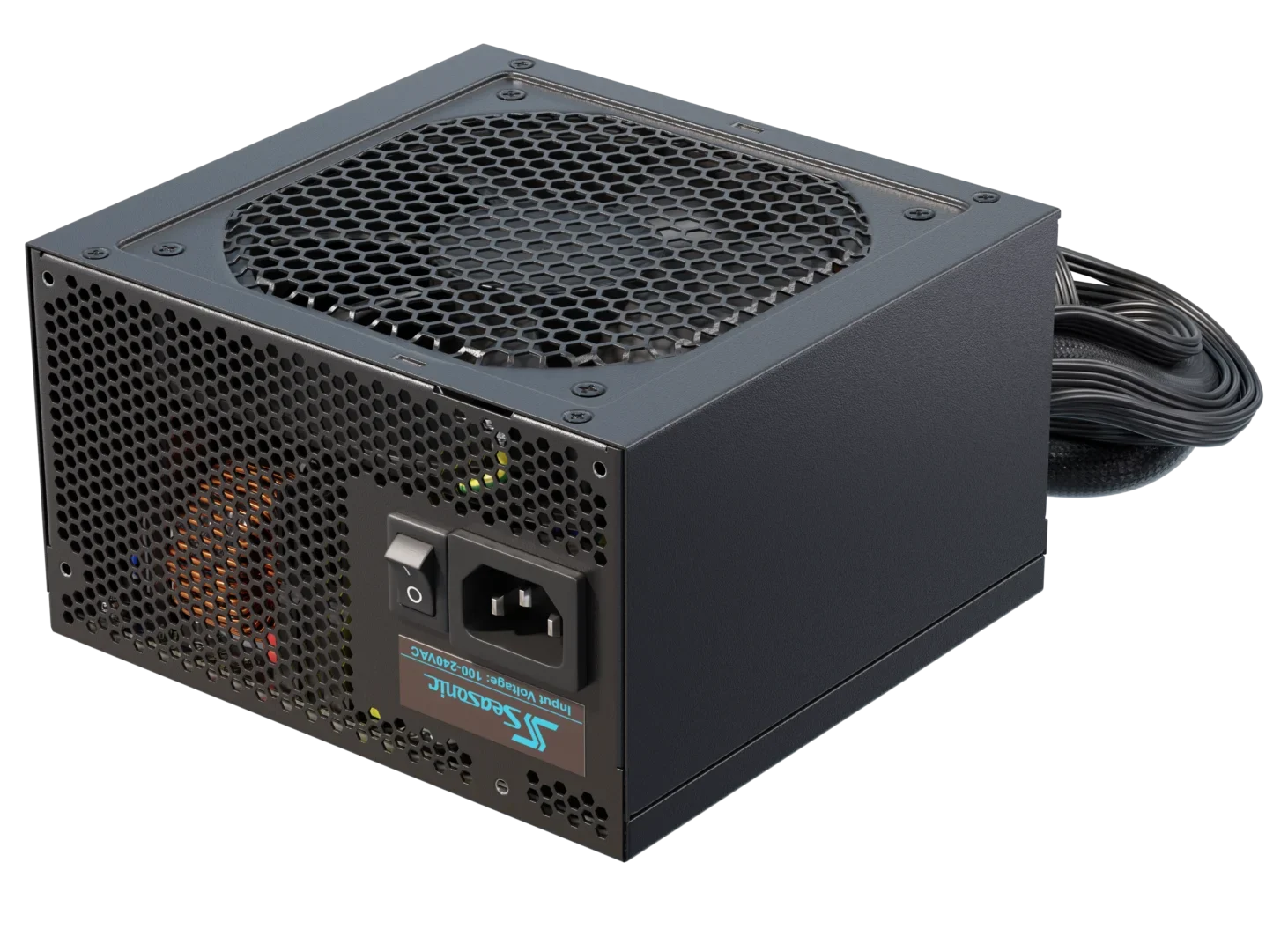

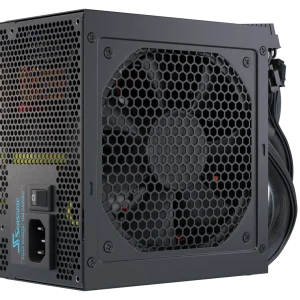

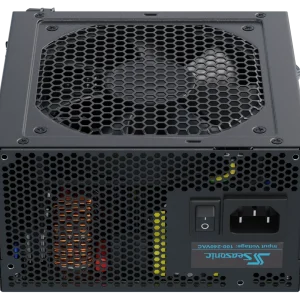

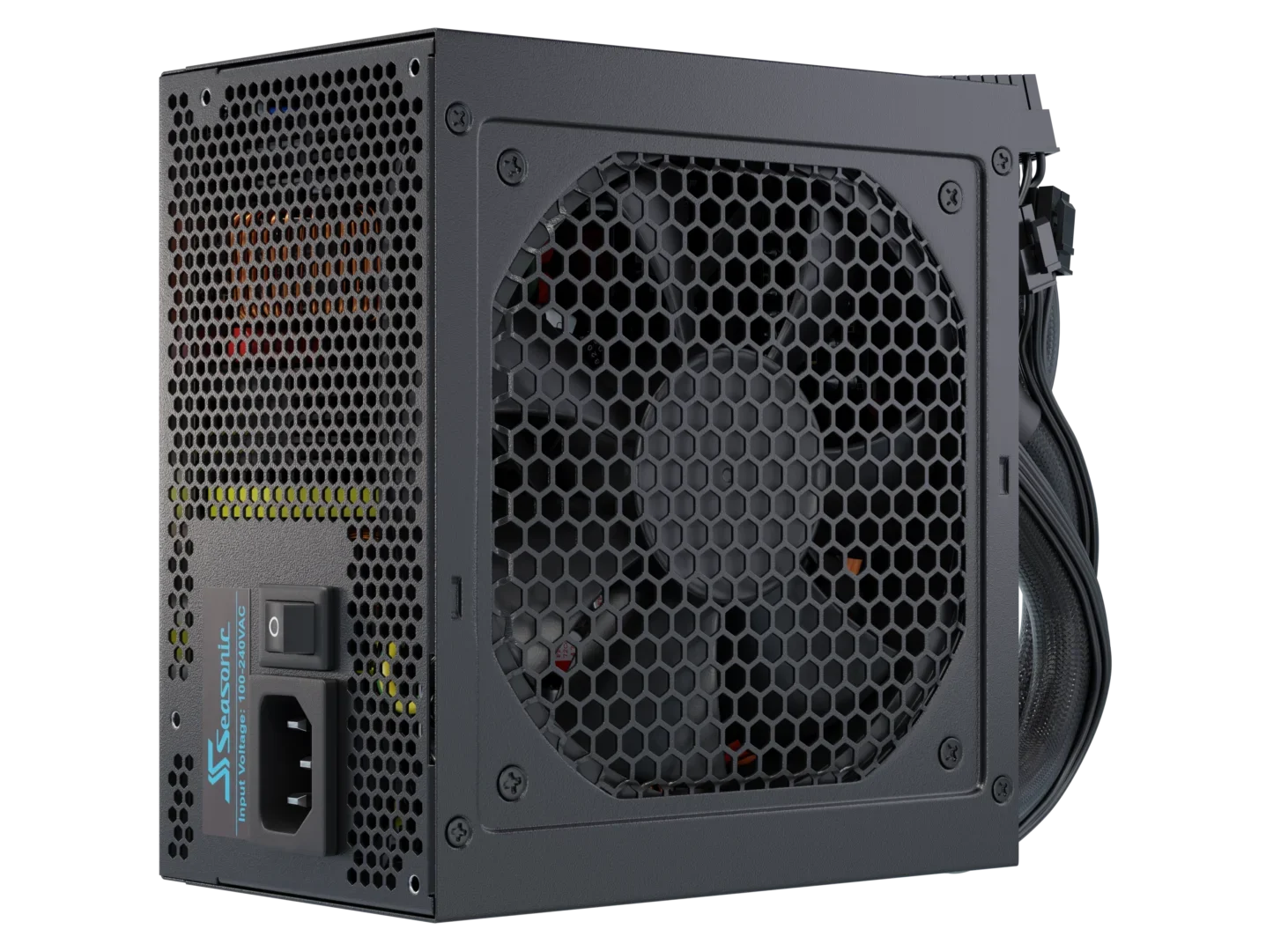

Seasonic 750W G12 V1.5 GM-750 Semi-Modular 80 Plus Gold ATX PSU

G12 GM
The G12 GM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GM-Series achieves 80 PLUS Gold standard, providing at least 87%, 90%, and 87% power usage efficiency at 20%, 50%, and 100% operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GM series power supplies to reduce energy waste, resulting in savings on energy costs for users. Additionally, the G12 GM units utilize the LLC resonant converter design and the industry's leading Smart and Silent Fan Control (S2FC) for optimal performance and quiet operation.

SPECIFICATIONS

Technical Specifications
80PLUS: Gold
Cybenetics Efficiency Level: TBA
Cybenetics Noise Level: TBA
Form Factor: ATX/EPS
Dimensions: 140 mm (L) x150 mm (W) x 86 mm (H)
Fan Information: Fan Size: 120 mm
Fan Control: Smart and Silent Fan Control
Fan Bearing: Sleeve Bearing
Life Expectancy: 25,000 hours at 40 C, 15 % 65 % RH
Cable Information: Modularity: Semi-Modular
Cable type: Black Flat Cables
Electrical Features: Operating Temperature: 0 – 50 C (derating from 100 % to 80 % from 40 C to 50 C linearly)
MTBF @ 25 C, excl. fan: 100,000 hours
AC Input: Full Range
Protection: OPP, OVP, OCP, SCP
Safety and Environmental: Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, CE, FCC
Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty: 5 Years

• Power Output
• AC Input: Voltage: 100 V – 240 V
• Current: 9 – 4.5 A
• Frequency: 50 Hz – 60 Hz
• DC Output: Rail: +3.3 V: +5 V: +12 V: -12 V: +5 VSB
• Maximum Power: 20 A: 20 A: 62 A: 0.3 A: 2.5 A
• 100 W: 744 W: 3.6 W: 12.5 W
• Total continuous power: 750 W
