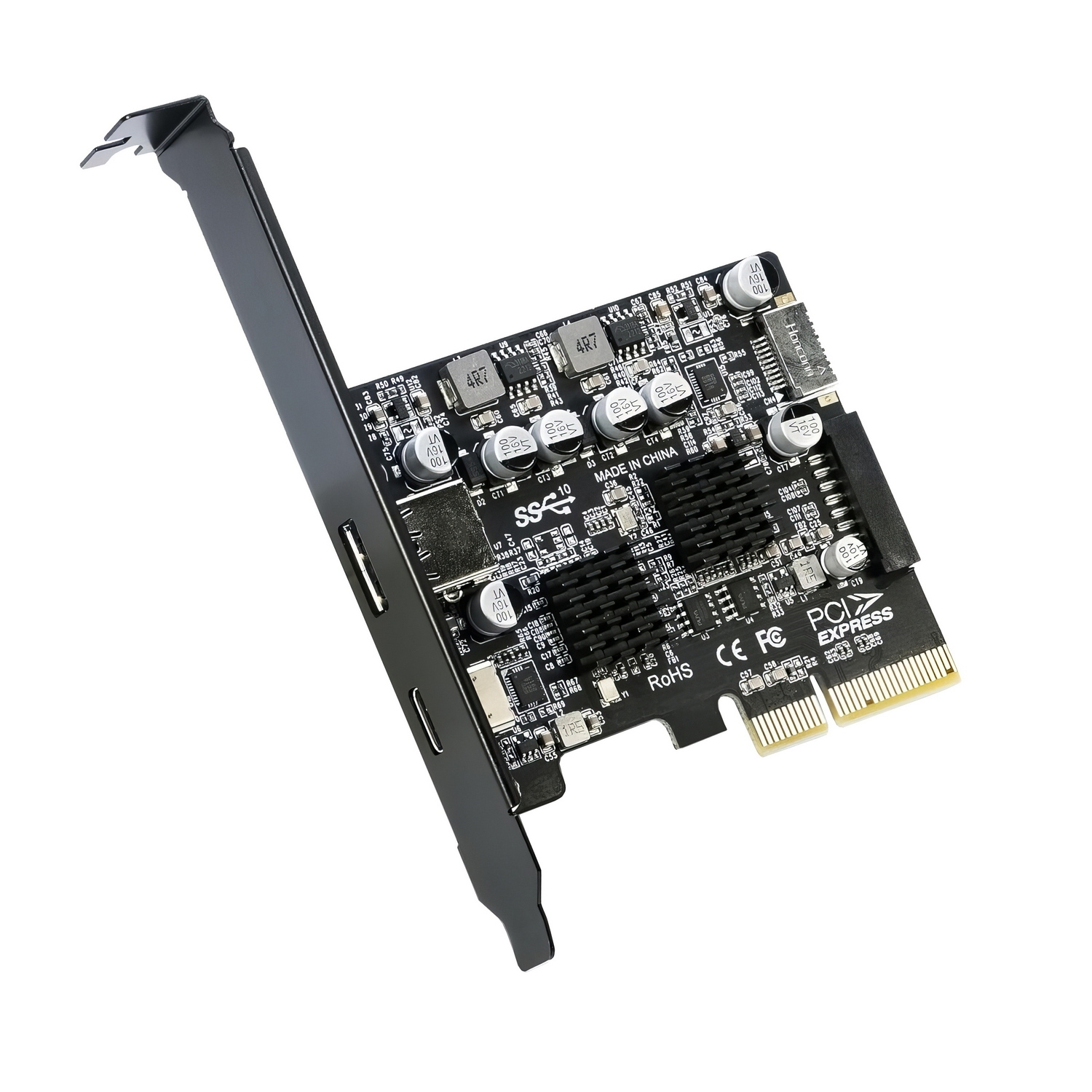

Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card

Name: Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card
Brand: Simplecom
SKU: PL-SPPG9N61
Price: 78.95 AUD
Availability: InStock

Item price

$78.95

FREE delivery to most of Australia

or 4 payments of $19.74 with Afterpay & Zip

Delivery is calculated at checkout — the total you see before you pay is the total you pay.

In stock · ready to order

Estimated delivery Tue, 15 Sept – Wed, 23 SeptShips from Australia · we email your tracking number as soon as it ships. An estimate, not a guaranteed delivery date.

Delivery & checkout

Delivery postcode

Quantity

Total to pay$78.95

VISAAMEXafterpayZip.

$78.95

Free delivery

Product details

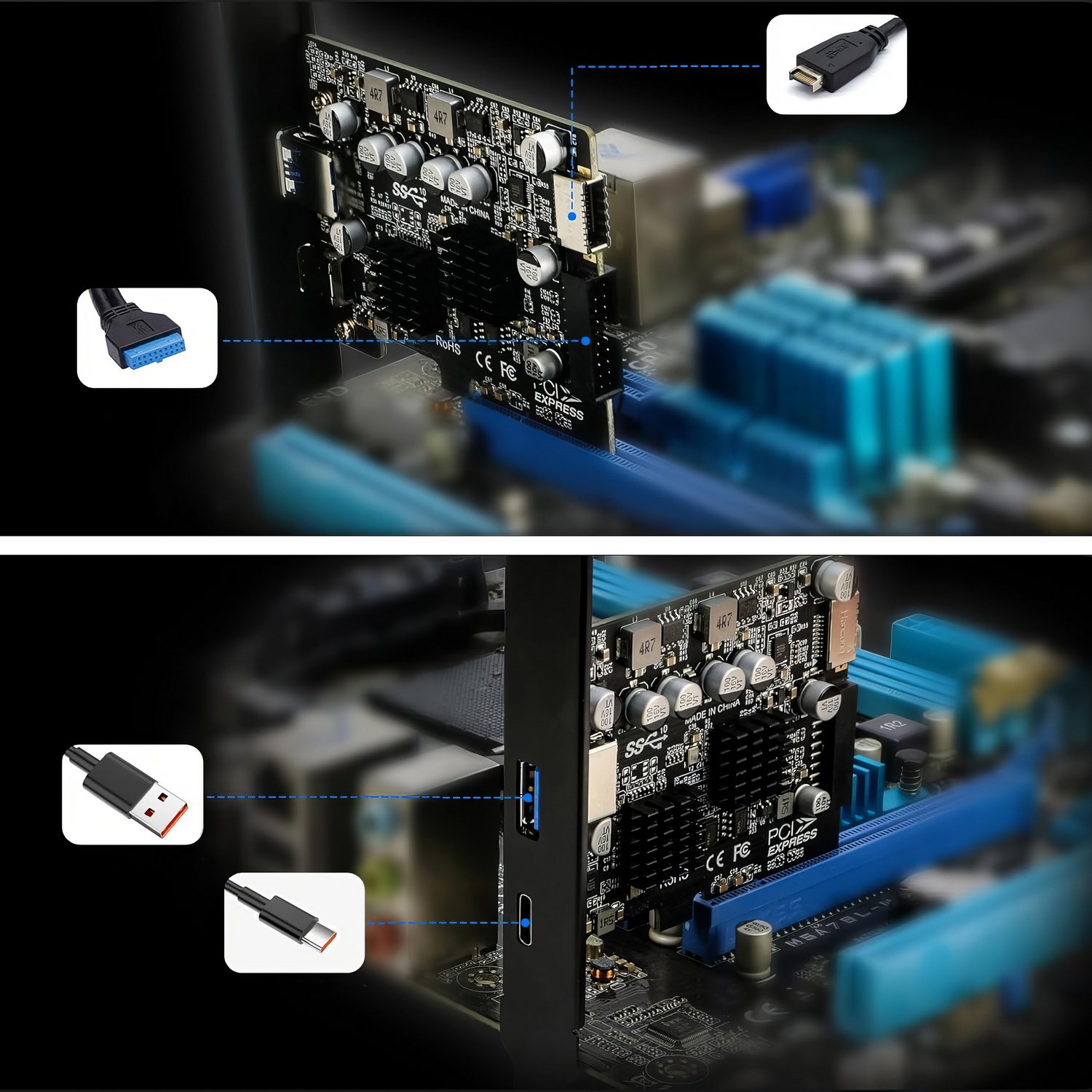

Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card EC315 is a PCI Express expansion card designed to provide both external and internal USB connectivity. It features 4x external and internal USB connectors, offering data transfer speeds of up to 10Gbps. With integrated PCI Express to USB 3.2 Gen 2 controller and USB 3.2 Gen 2 hub controller, this expansion card allows the USB ports on both the rear and front panels to operate simultaneously. The rear panel includes one USB-C and one USB-A port, while there are two internal connectors for front panel, a 19/20-Pin connector for front USB 3.0 port and a Key-A (Type-E) connector for front USB-C port. Powered directly via PCIe, it requires no external power, and integrated PCIe 12V to 5V modules provide necessary power to the USB ports. It's plug-and-play and easy to install, with automatic installation on Windows systems. Features PCIe x4 expansion card, also compatible PCIe x8 or x16 slot USB 3.2 Gen 2 interface supports data transfer rates of up to 10Gbps Integrated PCIe to USB 3.2 Gen 2 controller and USB 3.2 Gen 2 hub controller The USB ports on the rear panel and front panel can operate simultaneously Two rear panel connectors, 1x USB-C and 1x USB-A port Two internal connectors for front panel, USB 3.0 19/20-Pin and Key-A (Type-E) connectors Backwards compatible with USB 2.0 and USB 1.1 devices Built-in over current protection on each USB port Powered by PCIe, no external power required Built-in PCIe 12V to 5V modules provide power to USB ports Plug and play, automatic installation on Windows Specifications Package Contents 1x USB 3.2 Gen 2 Expansion Card 1x Low Profile Bracket SystemRequirement 1x available PCIe 3.0 or higher x4/x8/x16 slot on motherboard, please note PCIe 1.0 or 2.0 x4 slot bandwidth is lower than 10Gbps Plug and play for Windows 8 and above operating system, Windows 7 system need to install driver

Specifications

PCIe Interface: PCIe 3.0 x4, compatible PCIe x8 or x16 slot
USB Standard: USB 3.2 Gen 2 10Gbps
Rear Panel Connectors: 1x USB-A, 1x USB-C
Internal Connectors for Front Panel: 1x USB 3.0 19/20Pin socket (Front USB-A), 1x Key-A (Type-E) connector (Front USB-C)
USB Speed Support: SuperSpeed+ (10Gpbs), SuperSpeed (5Gpbs), HiSpeed (480Mbps), Full Speed (12Mbps)
USB Power Source: Integrated PCIe 12V to 5V module
Operating System Support: Windows 7 and above
